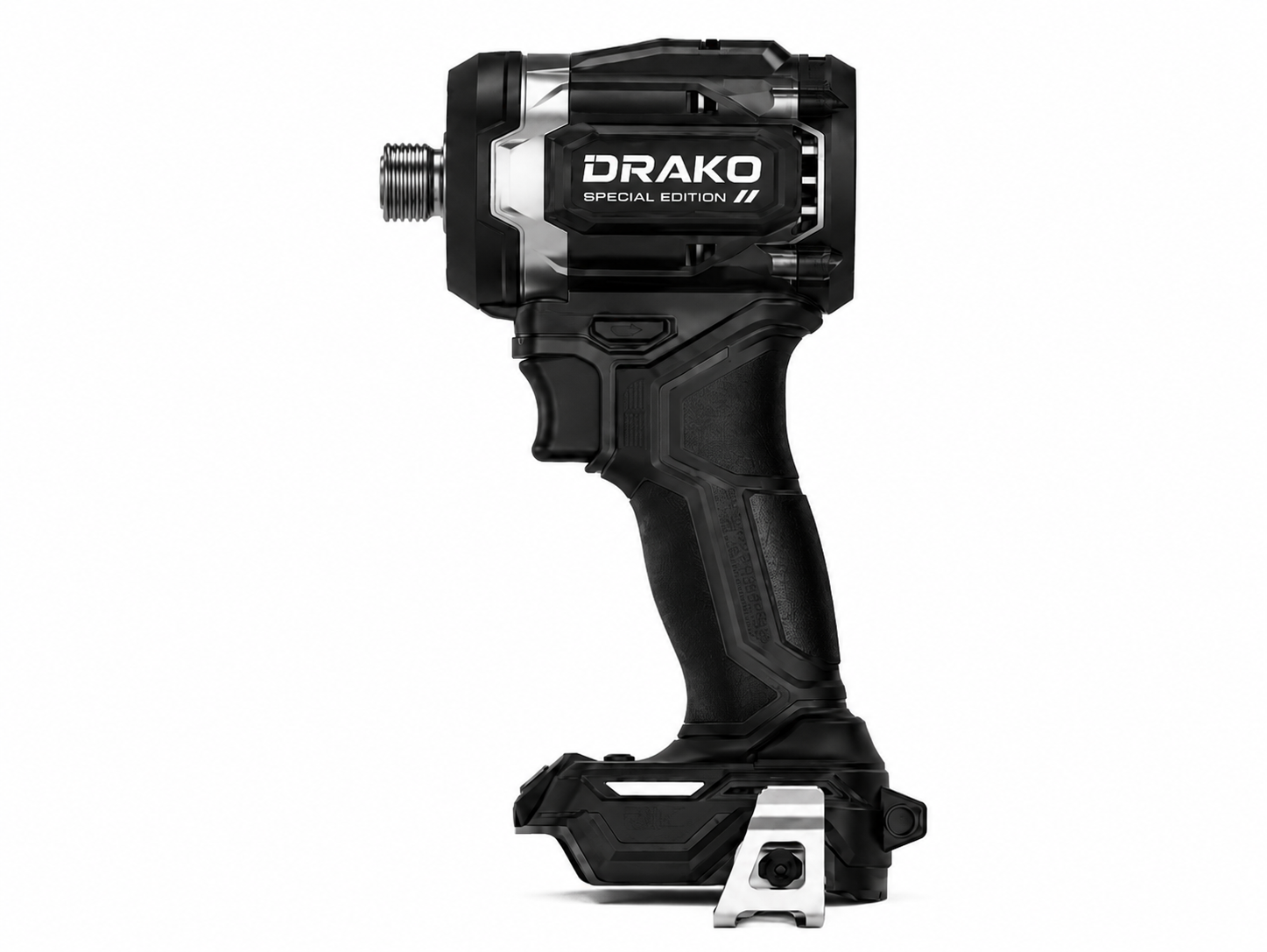

DRAKO V20-ID300 Brushless Impact Driver
- Built for cordless tool buyers
- Ready for retail and wholesale channels
- Clear product data for fast sourcing
Request Pricing for This Product
Share your market, quantity, packaging, and branding needs for a focused quotation.
Plan your sourcing enquiry
- MOQ
- Quoted by model, kit, and packaging configuration
- Lead Time
- Confirmed after quantity and customization review
- Packaging
- Customizable packaging options
- Compliance
- Documents reviewed against your target market
- Warranty
- Order-specific terms confirmed in the quotation
- Applications
- Professional distribution, retail, maintenance, and OEM programs
DRAKO V20-ID300 is a 20V brushless impact driver with selectable torque, speed memory, depth-memory self-stop, and dedicated thin- and thick-metal fastening modes for repeatable control.
Technology Specifications
| Model | V20-ID300 |
|---|---|
| Rated Voltage | 20V DC max |
| Motor Type | Brushless |
| Rated Speed | 1200 / 1900 / 2500 / 3200 RPM (±5%) |
| Impact Rate | 1400 / 1800 / 3500 / 4000 IPM (±5%) |
| Max Torque | 80 / 150 / 230 / 300 Nm (±10%) |
| Max Reverse Torque | 450 Nm (±10%) |
| Output Drive | 6.35 mm (1/4 in) |
| Bare Tool Weight | 1.2 kg |
| Bare Tool Dimensions | 113 × 80 × 215 mm |
| Standard Configuration | Bare tool |
| Packaging | Customizable packaging options |
20V Battery Compatibility
Confirm the tool model, battery interface, charger, and kit configuration before ordering.
Review the 20V battery platformPackage Information
Customizable packaging options
Description
Repeatable fastening with intelligent memory control. The DRAKO V20-ID300 Brushless Impact Driver combines high-torque performance with speed memory and depth-memory self-stop control. It is designed to help operators repeat fastening results with greater consistency across assembly, maintenance, sheet-metal, and mechanical installation work.
Memory Modes for Consistent Results
- S Speed Memory Mode: Hold the speed control button for two seconds to save the current operating speed. The tool can then repeat that preferred speed for repetitive fastening work.
- M Depth-Memory Self-Stop Mode: The first fastener establishes the reference depth. On subsequent fasteners, the driver automatically stops when the same depth is reached, helping keep screw seating consistent without relying only on trigger feel.
- Thin-Metal Mode: Uses a controlled fastening profile for thin sheet metal, helping reduce deformation, over-driving, and inconsistent seating.
- Thick-Metal Mode: Provides a stronger, faster fastening profile for thicker steel, pipes, and angle iron applications. The tool slows and stops after the fastener reaches the intended locked condition.
- Forward and Reverse Self-Stop Mode: Supports controlled self-stop operation in both directions. In reverse, the driver automatically reduces speed after the fastener is released for improved control.
Controlled Power for Professional Applications
Four selectable speed and impact levels allow the operator to match output to the material and fastener. The brushless motor delivers up to 300 Nm of selectable forward torque, while the impact mechanism supports demanding fastening and removal work. The 1/4 in hex output is suited to common impact-rated bits and accessories.
Typical Applications
- Sheet-metal and HVAC installation
- Electrical and mechanical assembly
- Steel, pipe, and angle-iron fastening
- Automotive and equipment maintenance
- Repetitive installation and repair work
Operating note: Select the intelligent mode according to the material, fastener, and working condition. If the application behaves abnormally, return to the normal mode and reassess the fastening setup.
